제품 상세 정보:
|
| 강철 재료: | Q235B, Q355B 또는 구매자의 요청 : ASTM, BSEN, DIN, IPE, AISI, JIS | 애플리케이션: | 아파트, 호텔, 기숙사, 다중 층 사무실 |
|---|---|---|---|
| 표면 처리: | 그림 또는 뜨거운 딥 아연 도금 | 작업 범위: | 디자인, 제작, 설치 |
| 조립 시간: | 전통적인 건물보다 짧습니다. | 크기: | 유연한 |
| 격리: | 단열 및 방음 장치를 장착할 수 있습니다. | 설치: | 현장의 엔지니어 지침 |
| 서비스 수명: | 50년 이상 | 유지: | 낮은 유지 보수 요구 사항 |
| 생산 색상: | 맞춤형 | 응용 분야: | 철골 구조물 제작 건설 |
| Hs 코드: | 9406900090 |

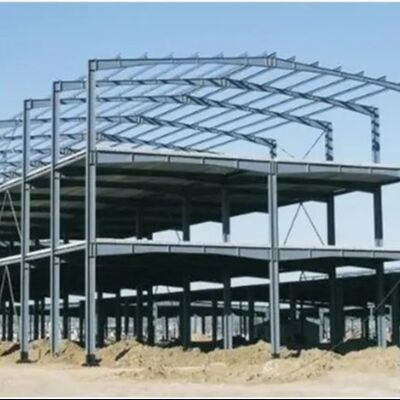

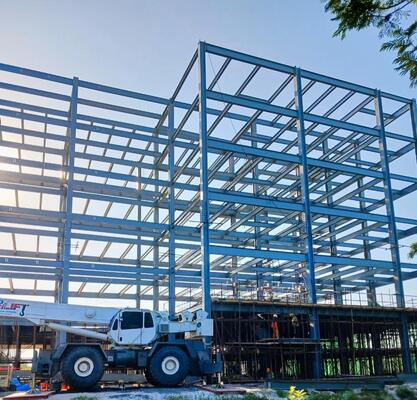

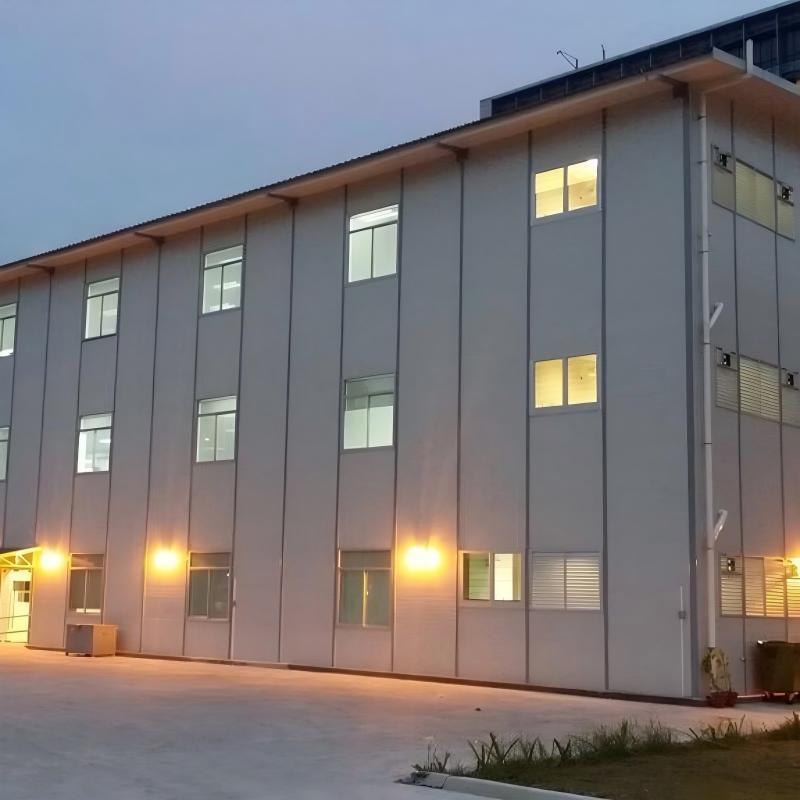

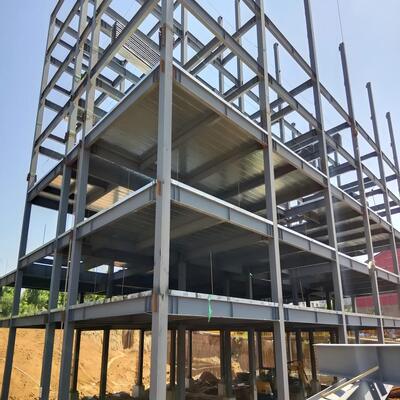

The Prefabricated Steel Structure Hotel Building for Resort Accommodation is a modern hospitality solution designed for hotels, resorts, serviced apartments, and commercial accommodation projects. By combining high-strength steel framing with energy-efficient enclosure systems, the building achieves fast construction, flexible architectural design, and long-term durability.
Compared with traditional reinforced concrete buildings, steel structure hotels offer shorter construction periods, lower overall building weight, easier future expansion, and more efficient project management. All major structural components are prefabricated in the factory and assembled on site, ensuring high precision and consistent quality.
All main components are made in a factory and shipped ready for on site assembly. There is no need for on site welding — connections are bolted, which helps reduce construction time and labor costs. This also makes it easier to build in areas with limited skilled workers or tight project timelines.
| Item name | Specification | Material Parameter | Technical Treatment |
|---|---|---|---|
| Column | Welded H-section, cross-section, Box, steel pipe | Q235B,Q355B | Paint or Hot-dip galvanized |
| Beam | Welded H-section, steel Truss | Q235B,Q355B | Paint or Hot-dip galvanized |
| Bracing | Tie rod, Casing pipe, Angle steel | Q235B,Q355B | |
| Purling | C / Z shape, purling Thickness:1.8mm~3.0mm | Q235B,Q355B | Hot-dip galvanized |
| Wall & roof panel | EPS / PU / PIR / Glass wool / Rock wool Sandwich panel or coated steel sheet. | Steel T=0.426~0.8mm,insulation T=50~150mm | Alu-zinc 150g, Fluorocarbon paint |
| Door | Sliding door, rolling door, glass door | Steel or Aluminum sheet,T=1.0~1.5mm | Paint or Hot-dip galvanized |
| Window | Alloy-Glass,Aluminium alloy-shutter, Louvers | T=1.0~2.0mm | Alloy |
| Skylighting panel | FRP, T=1.5mm or T=1.8mm | Coefficient of thermal expansion:2.2x10-5/cm/cm/℃ | Light transmittance 85% |
| Ventilator | Turbine ventilator, and electric type | Steel,stainless steel,PC | Paint or Hot-dip galvanized,304 |
| Gutter | Galvanized or stainless steel plate | T=2.0mm | Hot-dip galvanized,304 |
| Bolt | Ordinary, high strength | 10.9S,4.8s | Hot-dip galvanized |
| Anchor bolt | Steel rod M24,M27, M30 | Q235B |
|
Surface Treatment |
Suitable Environment |
|---|---|
|
Alkyd Paint |
General inland projects |
|
Epoxy Paint |
Most hotel and commercial projects |
|
Hot-Dip Galvanizing |
Coastal and highly corrosive areas |
|
Application |
Description |
|---|---|
|
Resort Hotel |
Vacation and tourism accommodation projects |
|
Business Hotel |
Urban commercial hospitality buildings |
|
Boutique Hotel |
Modern architectural hotel projects |
|
Serviced Apartment |
Long-term accommodation facilities |
|
Staff Accommodation |
Industrial or mining camp housing |
|
Tourist Lodge |
Eco-resort and scenic-area accommodation |
|
Inspection Item |
Purpose |
|---|---|
|
Material Certificate |
Verify steel grade |
|
Welding Inspection |
Ensure weld quality |
|
Dimension Check |
Ensure fabrication accuracy |
|
Coating Thickness |
Verify corrosion protection |
|
Packing Inspection |
Ensure shipping safety |
Packaging & Shipping
All steel components are bundled and secured on steel pallets for safe handling and transportation. The pallets are loaded into containers using gantry cranes and forklifts, ensuring efficient and damage-free loading. Additional securing measures are applied inside the container to prevent shifting, deformation, or impact during sea transportation.
1. What types of hotels can be built with steel structures?
Business hotels, resort hotels, boutique hotels, serviced apartments, and multi-storey accommodation buildings.
2. How many floors can the steel hotel have?
Typically 2–10 floors or more, depending on local regulations and engineering design.
3. Can the room layout be customized?
Yes. Our structure design can be adjusted according to the layout you provided.
4. Is the building suitable for seismic areas?
Yes. Steel structures provide excellent seismic performance when properly designed.
5. What steel grades are available?
Commonly Q235B and Q355B structural steel.
6. What wall systems can be used?
Sandwich panels, AAC panels, concrete walls, curtain walls, and decorative cladding systems.
7. Can the hotel meet thermal insulation requirements?
Yes. Various insulation solutions are available based on local climate conditions.
8. What is the expected service life?
More than 50 years with proper maintenance.
9. Do you provide structural calculations?
Yes. Structural analysis and calculation reports can be provided.
10. Can you design according to local codes?
Yes. We can design according to project-specific wind, snow, and seismic requirements.
11. What surface treatment is recommended?
Epoxy paint for most hotel projects; hot-dip galvanizing for coastal environments.
12. How are the components packaged?
Steel members are bundled, labeled, and secured for container transportation.
13. Do you provide installation support?
Yes. Installation drawings, remote guidance, and engineer dispatch services are available.
14. What information is needed for a quotation?
Building size, number of floors, project location, room quantity, and design requirements.
15. How long does production take?
Usually 25–40 days depending on project scale.
