Steel Apartment Building With Multi-Story Prefabricated Frame Structure And Insulated Wall Panel

Steel Apartment Building With Multi-Story Prefabricated Frame Structure And Insulated Wall Panel
Steel Apartment Building With Multi-Story Prefabricated Frame Structure And Insulated Wall Panel Steel Apartment Building With Multi-Story Prefabricated Frame Structure And Insulated Wall Panel Steel Apartment Building With Multi-Story Prefabricated Frame Structure And Insulated Wall Panel Steel Apartment Building With Multi-Story Prefabricated Frame Structure And Insulated Wall Panel Steel Apartment Building With Multi-Story Prefabricated Frame Structure And Insulated Wall Panel

큰 이미지 :  Steel Apartment Building With Multi-Story Prefabricated Frame Structure And Insulated Wall Panel

제품 상세 정보:
원래 장소: 중국
브랜드 이름: Ruly Steel
인증: CE, AISC, AWS-D1.1, SGS, BV, ISO
모델 번호: Rulyz0003
결제 및 배송 조건:
최소 주문 수량: 200 평방 미터
가격: USD29-USD99 Per Square Meter
포장 세부 사항: 요청으로
배달 시간: 30 일
지불 조건: , L/C, T/T, Western Union
공급 능력: 한 달에 20000 평방 미터

Steel Apartment Building With Multi-Story Prefabricated Frame Structure And Insulated Wall Panel

설명
강철 재료: Q235B, Q355B 또는 구매자의 요청 : ASTM, BSEN, DIN, IPE, AISI, JIS 신청: 아파트, 호텔, 기숙사, 다중 층 사무실
표면 처리: 그림 또는 뜨거운 딥 아연 도금 작업 범위: 설계, 제작, 설치
강조하다:

Multi Story Prefabricated Steel Frame

,

Insulated Wall Panel Steel Building

,

Prefabricated Frame Structure Steel Building

Our steel apartments offer a durable, cost-effective, and quick-to-build housing solution for modern urban development. Constructed with high-strength steel frames and customizable wall panels, these apartments are designed to withstand environmental stress while providing a comfortable living environment.

Steel apartments are ideal for affordable housing projects, multi-story residential buildings, and even temporary housing solutions. The prefabricated modular design allows for faster construction times, reducing overall project costs and minimizing labor requirements. They also offer excellent energy efficiency due to their high-quality insulation options.

Processing & Inspection

Each steel apartment component is manufactured with precision using the latest technology, ensuring strength, quality, and consistency. The manufacturing process includes:

  • Cutting, welding, and forming of steel frames
  • Anti-corrosion treatment for long-lasting durability
  • Insulation panel fabrication for energy efficiency

Every part undergoes strict quality control:

  • Material checks
  • Structural integrity testing
  • Surface coating inspection

These inspections guarantee that each steel apartment meets both international construction standards and your specific requirements.

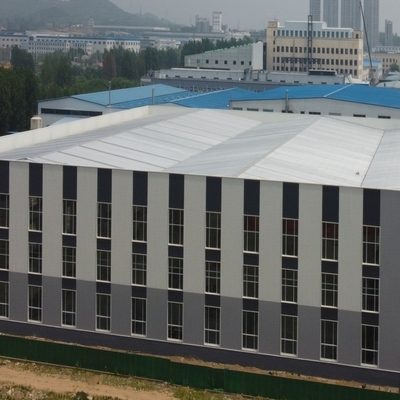

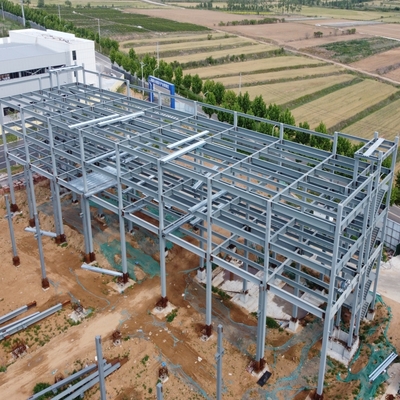

Steel Apartment Building With Multi-Story Prefabricated Frame Structure And Insulated Wall Panel 0

The building comes with basic wall, roof and floor panels that offer thermal and weather protection. Windows, doors and utility points can be pre installed or marked for on site finishing. You can add insulation, cladding or interior finishes to match local climate and aesthetic preferences.

It is not a luxury high rise, but a sensible solution for developers, governments or housing providers who need to deliver functional, durable homes without long construction periods. The focus is on practical design, ease of setup, and long term usability.

This type of apartment building works well in both urban and semi urban settings, especially where land is limited and demand for housing is rising. It’s built to support real living needs with a balance of cost, quality and speed.

Item name Specification Material Parameter Technical Treatment
Column H shape,Box,steel pipe,Hot-rolled sheet Q235B,Q355B Paint or Hot-dip galvanized
Beam H shape,steel Truss,Hot-rolled sheet Q235B,Q355B Paint or Hot-dip galvanized
Bracing Tie rod,Casing pipe,Angle steel Q235B,Q355B
Purling C / Z shape, purling Thickness:1.8mm~3.0mm Q235B,Q355B Hot-dip galvanized
Wall & roof panel EPS / PU / PIR / Glass wool / Rock wool Sandwich panel or Single plate. Steel T=0.426~0.8mm,insulation T=50~150mm Alu-zinc 150g, Fluorocarbon paint
Door Sliding or rolling door Steel or Aluminum sheet,T=1.0~1.5mm Paint or Hot-dip galvanized
Window Alloy-Glass,Aluminium alloy-shutter, Louvers T=1.0~2.0mm Alloy
Skylighting panel FRP, T=1.5mm or T=1.8mm Coefficient of thermal expansion:2.2x10-5/cm/cm/℃ Light transmittance 85%
Ventilator Turbine ventilator, and electric type Steel,stainless steel,PC Paint or Hot-dip galvanized,304
Gutter Galvanized or stainless steel plate T=2.0mm Hot-dip galvanized,304
Bolt Ordinary, high strength 10.9S,4.8s Hot-dip galvanized
Anchor bolt Steel rod M24,M27 M30 Q235B
Design Services

Our engineering team offers customized design services to create steel apartment buildings that meet your specific requirements. From the initial concept to the final design, we tailor each project to suit the local climate, site conditions, and budget.

We offer a variety of options, including:

  • Multi-story designs for urban areas
  • Energy-efficient insulation to reduce heating and cooling costs
  • Durable finishes for both interior and exterior
Packaging & Shipping

Our steel apartment components are pre-assembled into modular units, ensuring easy transport and fast assembly. All parts are securely packaged to prevent any damage during shipment.

We offer global shipping services, with our logistics team managing all the details to ensure timely and efficient delivery. Once the materials reach your site, we provide detailed assembly guides to help with installation, and on-site support can be arranged for larger projects.

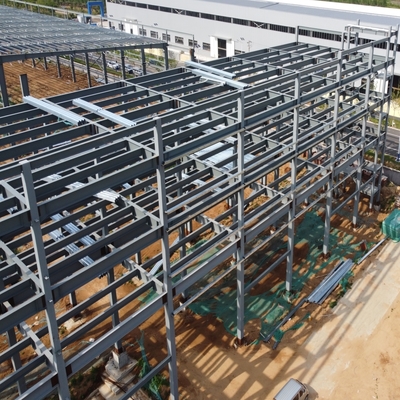

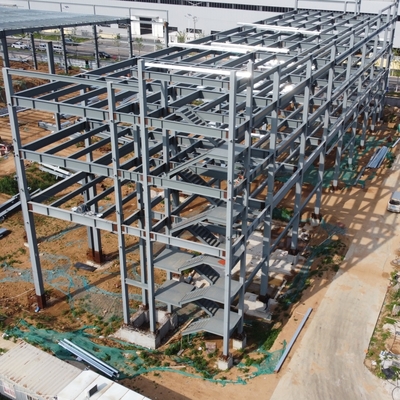

Steel Apartment Building With Multi-Story Prefabricated Frame Structure And Insulated Wall Panel 1
FAQ
  1. How long does it take to build a steel apartment?
    Steel apartments can be assembled much faster than traditional buildings. Construction time is usually reduced by 30-50%, depending on the size and complexity of the project.

  2. What is the lifespan of a steel apartment?
    With proper maintenance, steel apartments can last 30-50 years or more, thanks to their durable steel frame and weather-resistant coatings.
  3. Do you provide installation assistance?
    Yes, we provide detailed instructions and on-site support for larger projects to ensure smooth installation and quick turnaround.

  4. Is a steel apartment energy-efficient?
    Yes. Our steel apartments are designed with insulated panels that help to maintain a comfortable indoor climate, reducing energy consumption and lowering utility costs.
