제품 상세 정보:
|

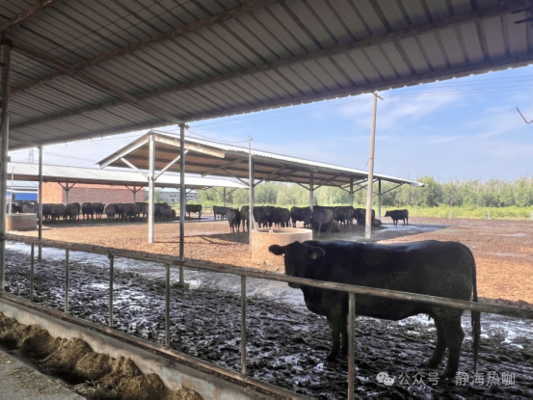

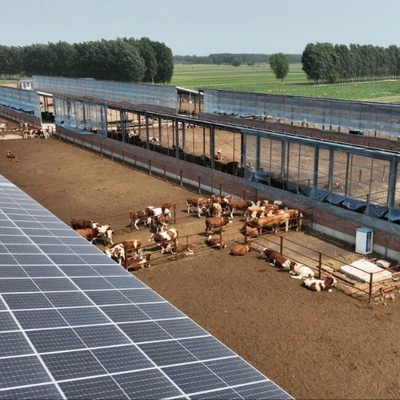

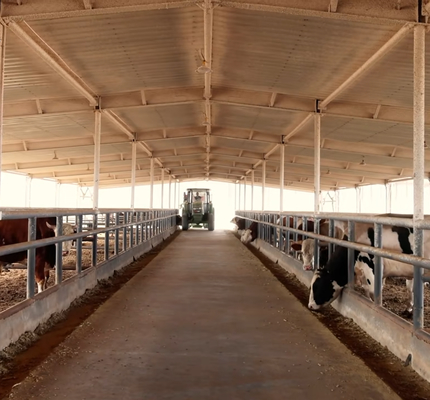

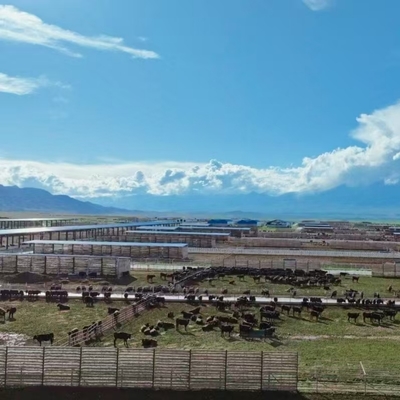

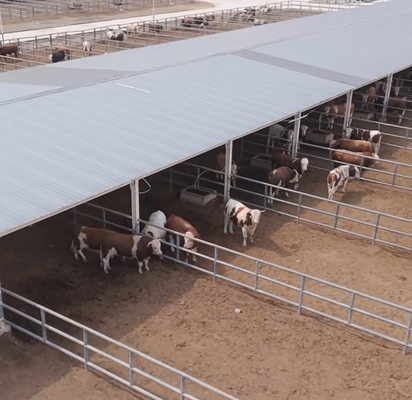

| 유형: | 강철 구조 소가 창고 | 신청: | 유제품 소 / 쇠고기 소 / 사료 로트 소 / 번식 주식 |
|---|---|---|---|
| 일반적인 고객 유형: | 가족 목장 / 상업용 유제품 / 쇠고기 사료 | 강철 등급: | Q235B, Q355B 또는 이와 동등한 |
| 표면 처리: | 그림 또는 뜨거운 딥 아연 도금 | 연결 방법: | 고강도 볼트 조립-현장 용접 없음, 빠르고 안전한 설치 |
| 강조하다: | Livestock Housing Solution Cow Shed,Galvanized Steel Cow Shed,Dairy Beef Cattle Cow Shed |
||
| Item name | Specification | Material Parameter | Technical Treatment |
|---|---|---|---|
| Column | H shape, Box, steel pipe, Hot-rolled sheet | Q235B, Q355B | Paint or Hot-dip galvanized |
| Beam | H shape, steel Truss, Hot-rolled sheet | Q235B, Q355B | Paint or Hot-dip galvanized |
| Bracing | Tie rod, Casing pipe, Angle steel | Q235B, Q355B | |
| Purling | C / Z shape, purling Thickness: 1.8mm~3.0mm | Q235B, Q355B | Hot-dip galvanized |
| Wall & roof panel | EPS / PU / PIR / Glass wool / Rock wool Sandwich panel or Single plate. | Steel T=0.426~0.8mm, insulation T=50~150mm | Alu-zinc 150g, Fluorocarbon paint |
| Door | Sliding or rolling door | Steel or Aluminum sheet, T=1.0~1.5mm | Paint or Hot-dip galvanized |
| Window | Alloy-Glass, Aluminium alloy-shutter, Louvers | T=1.0~2.0mm | Alloy |
| Skylighting panel | FRP, T=1.5mm or T=1.8mm | Coefficient of thermal expansion: 2.2x10-5/cm/cm/℃ | Light transmittance 85% |
| Ventilator | Turbine ventilator, and electric type | Steel, stainless steel, PC | Paint or Hot-dip galvanized, 304 |
| Gutter | Galvanized or stainless steel plate | T=2.0mm | Hot-dip galvanized, 304 |
| Downpipe | PVC / Color steel pipe T=0.5mm | Φ110, 160, 200 | Paint |
| Bolt | Ordinary, high strength | 10.9S, 4.8s | Hot-dip galvanized |
| Anchor bolt | Steel rod M24, M27 M30 | Q235B |
| Professional design | We design the drawing as your requirement or calculate the steel quantity based on your drawing. |
| Skilled fabrication | We make the independent production schedule to each project. |
| One-stop service | We have completed lots such kinds of projects, we could provide the integrated proposal for your project. |
| Professional QC | We guarantee the production and service as your request. |
| After sales service | If it has any questions that need us to do in your process of using, such as the maintain of outside insulation and steel components, just tell us, we will try to provide the service as well as we can. |
| 1 | Location (where will be built?) | _____country, area |
| 2 | Size: length*width*height | _____mm*_____mm*_____mm |
| 3 | Wind load (max. wind speed) | _____kn/m2, _____km/h, _____m/s |
| 4 | Snow load (max. snow height) | _____kn/m2, _____mm |
| 5 | Anti-earthquake | _____level |
| 6 | Brickwall needed or not | If yes, 1.2m high or 1.5m high |
| 7 | Thermal insulation | If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; if not, the metal steel sheets will be ok. The cost of the latter will be much lower than that of the former |
| 8 | Livestock quantity | The quantity of cattle / cow |
