제품 상세 정보:
|
| 애플리케이션: | 조립식 강철 산업 건축물 | 특징: | 철골 산업 건축물 건설 |
|---|---|---|---|
| 타입: | 산업적 강철 빌딩 | 익지않는 강철 물자: | Q235B, Q355B |
| 표면 처리: | 그림 또는 용융 도금법은 활성화합니다 | 서비스 수명: | 50 년 |
| 벽과 지붕: | 유리솜 | 작동 범위: | 디자인, 제작, 임명 |
| 하이 라이트: | 조립식 산업적 철골 Buildings,Q235B 산업적 강철 빌딩이 산업 건축물 건설을 조립식으로 짓습니다,Prefab Industrial Buildings Construction |
||
Steel Frame Industrial Buildings Construction Prefab Steel Industrial Building

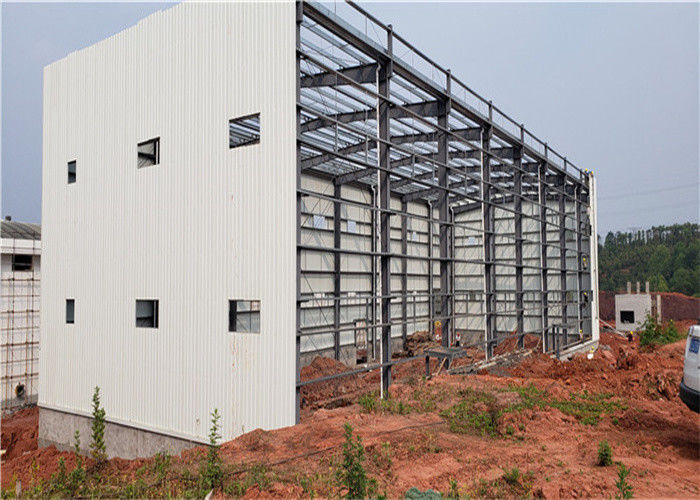

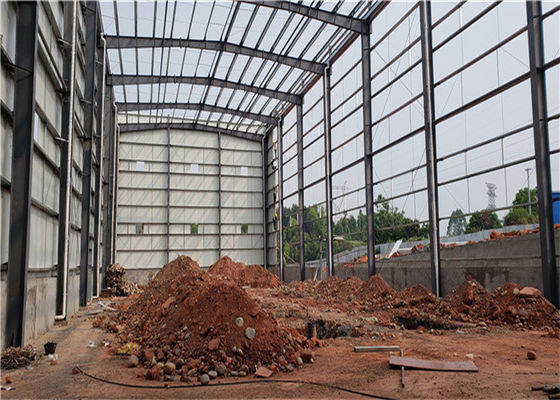

Steel Frame Industrial Buildings Construction Prefab Steel Industrial Building . This is a heavy industrial steel workshop for rail traffic equipment product. We design the proposal and drawing, fabrication for the steel structure components, installation for the steel structure, overhead crane, roof and wall insulation panel for this project.
Because of the height of this steel workshop building and heavy capacity of overhead crane, we design the steel column to be latticed steel column, it could bear large load from the crane and wind load and also save steel quantity.
Steel frame structure bulidings has lots advantages compared with concrete building such as high strength, large span, simple construction, short construction period: all components are prefabricated in the factory, the site is simply assembled, thus greatly shortening the construction period, a 6000 square meters of buildings, only 40 days to complete the basic installation.Beautiful and practical: the steel structure building line is simple and smooth, has the modern feeling.Color wall panels are available in a variety of colors, and other materials can be used for the wall, so it is more flexible.Reasonable cost: the steel structure building is light in weight, which reduces the basic cost, and the construction speed is fast, which can be completed and put into production as soon as possible. The comprehensive economic benefit is much better than the concrete structure building.
| Name |
Steel Frame Industrial Buildings Construction Prefab Steel Industrial Building |
| Structure Type | portal frame, single ridge, multi spans |
| Length | 240m |
| Width | 120m |
| Eave Height | 19m |
| Roof Slope | 10% |
| Gable Wall Column Spacing | 7.5m |
| Roof |
75 mm thick Rock wool sandwich panel |
| Wall | 75 mm thick Rock wool sandwich panel |
| Door | Sliding door |
| Window | Ribbon Skylight |
| Height difference between indoor and outdoor | 300mm |
| Main Steel Frame System | |
| Main structure | H section steel Q355, alkyd painting, two primary painting, two finish painting. |
| Roof purlin | XZ160*60*20*2.5, galvanized |
| Wall purlin | XZ160*60*20*2.5, galvanized |
| Intensive bolt | Grade 10.9 |
| Turn buckle bolt | M20+2, steel Q235, processing |
| Anchor bolt | M24, steel Q235, processing |
| Ordinary bolt | Galvanized bolt M20 |
| Ordinary bolt | Galvanized bolt M12 |
| Brace nut | Galvanized bolt M12 |
| Bracing System | |
| Cross brace | Φ20 round steel bar Q235, process and painted (alkyd painting) |
| Angle brace | L50*5 angle steel Q235, process and painted (alkyd painting) |
| Column bracing | Φ25 round steel bar Q235, process and painted (alkyd painting) |
| Tie bar | Φ127*3 steel pipe Q235, process and painted (alkyd painting) |
| Batter brace | Φ32*2.5, Φ12 round steel bar Q235, process and painted (alkyd painting) |
| Wall & Roof System | |
| Roof panel | Corrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU) |
| Wall panel | Corrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU) |
| Edge cover | 0.5mm color plate, angle Alu. |
| Fittings & accessories | Nails, glue etc. |
| Unpowered ventilator | Diameter Φ600, stainless steel |
| Sky lighting band | 1.2mm FRP, double layer |
| Sliding door | sandwich panel door |
| Roof drainage system | |
| Gutter | 0.5mm color steel plate |
| Rainspout pipes | Φ110 PVC pipe |
Method 1: We provide construction drawing before installation.
Method 2: If you still don't know how to install, We will teach you the installation in our factory. when necessary , we will assemble a sample steel structure building for you.
All the structure components, panels,bolts and sort of accessories will bewell packed with standard package suitable ocean transportation and loaded into 40’HQ.
All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers,who will prevent the goods to be damaged.
We can produce light and heavy steel structure buildings, such as warehouse, workshop, storage, construction materials, high rise steel office buiding, factory , plant, exhibition hall, steel tile.
The following question we need to know before making the price. Just feel free to fill what you know.
| 1 | Location (where will be built?) | _____country, area |
| 2 | Size: length*width*height | _____mm*_____mm*_____mm |
| 3 | wind load (max. wind speed) | _____kn/m2, _____km/h, _____m/s |
| 4 | snow load (max. snow height) | _____kn/m2, _____mm |
| 5 | anti-earthquake | _____level |
| 6 | brickwall needed or not | If yes, 1.2m high or 1.5m high |
| 7 | thermal insulation | If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; . if not, the metal steel sheets will be ok. The cost of the latter will be much lower than that of the former |
| 8 | door quantity & size | _____units, _____(width)mm*_____(height)mm |
| 9 | window quanity & size | _____units, _____(width)mm*_____(height)mm |
| 10 | crane needed or not | If yes, _____units, max. lifting weight____tons; max. lifting height _____m |
