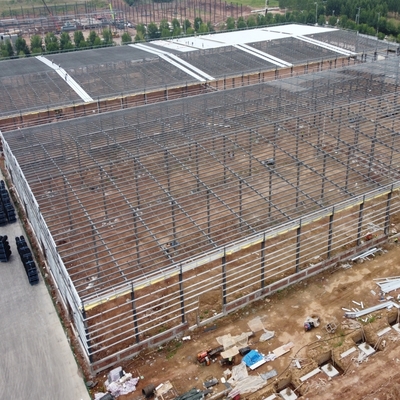

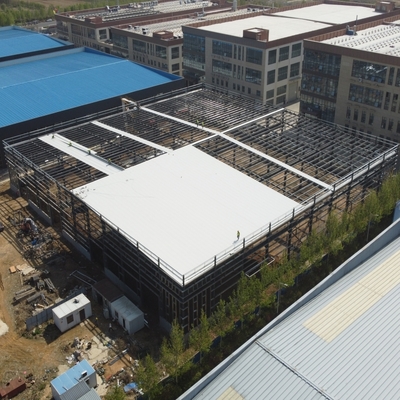

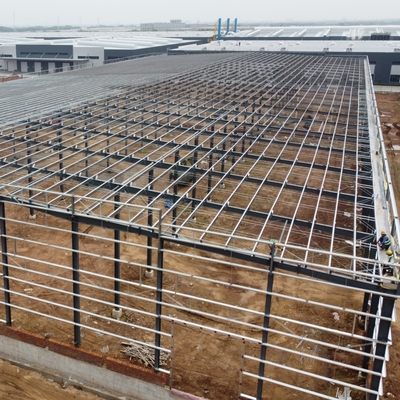

133m×67m 조립식 철골 구조물 창고 구조적 강철 골조 건물

133m×67m 조립식 철골 구조물 창고 구조적 강철 골조 건물
133m×67m 조립식 철골 구조물 창고 구조적 강철 골조 건물 133m×67m 조립식 철골 구조물 창고 구조적 강철 골조 건물

큰 이미지 :  133m×67m 조립식 철골 구조물 창고 구조적 강철 골조 건물

제품 상세 정보:
원래 장소: 중국
브랜드 이름: Ruly Steel
인증: SGS, BV, ISO
모델 번호: Ruly0303
결제 및 배송 조건:
최소 주문 수량: 500 평방미터
가격: USD29-USD99 Per Square Meter
포장 세부 사항: 요구로서
배달 시간: 30 일
지불 조건: L/C (신용장), 전신환, 웨스턴 유니온
공급 능력: 달 당 20000 평방 미터

133m×67m 조립식 철골 구조물 창고 구조적 강철 골조 건물

설명
특징: 조립식 철골 구조물 저장소 타입: 강철 구조물 창고
익지않는 강철 물자: Q235B, Q355B, ASTM A36 벽과 지붕: 유리솜
표면 처리: 페인트 등 작동 범위: 디자인, 제작, 임명
수평으로 탄 폭파: SA 2.5 서비스 수명: 50 년
하이 라이트:

133m×67m Prefab Steel Structure Warehouse

,

Q355B Prefab Steel Structure Warehouse

,

133m×67m Structural Steel Frame Buildings

Prefab Steel Structure Warehouse Structural Steel Frame Buildings



Steel structure building is made from welding H section steel as column and beam, some of them has crane beam, it's made from H steel beam too.Galvanized C ,Z section steel as wall purlin and roof purlin, Its wall and roof are made of metal steel sheet or sandwich panel. The door is electric shutter door or flat open door. Window is pvc or aluminum window. With the extensiveuse of steel structure,its advantages are increasingly significant compared with traditional building.

Qingdao Ruly Steel Engineering Co.,Ltd is a professional steel structure fabrication and construction company for light and heavy steel structure Design, Manufacture & Installation.



Project details:



Name Prefab Steel Structure Warehouse Structural Steel Frame Buildings
Structure Type portal frame, single ridge, single span
Length 133m
Width 67m
Eave Height 11.5m
Roof Slope 10%
Gable Wall Column Spacing 7m
Roof

75 mm Glass wool sandwich panel



Wall                         75mm Glass wool sandwich panel
Door Sliding door
Window Ribbon Skylight
Height difference between indoor and outdoor 300mm

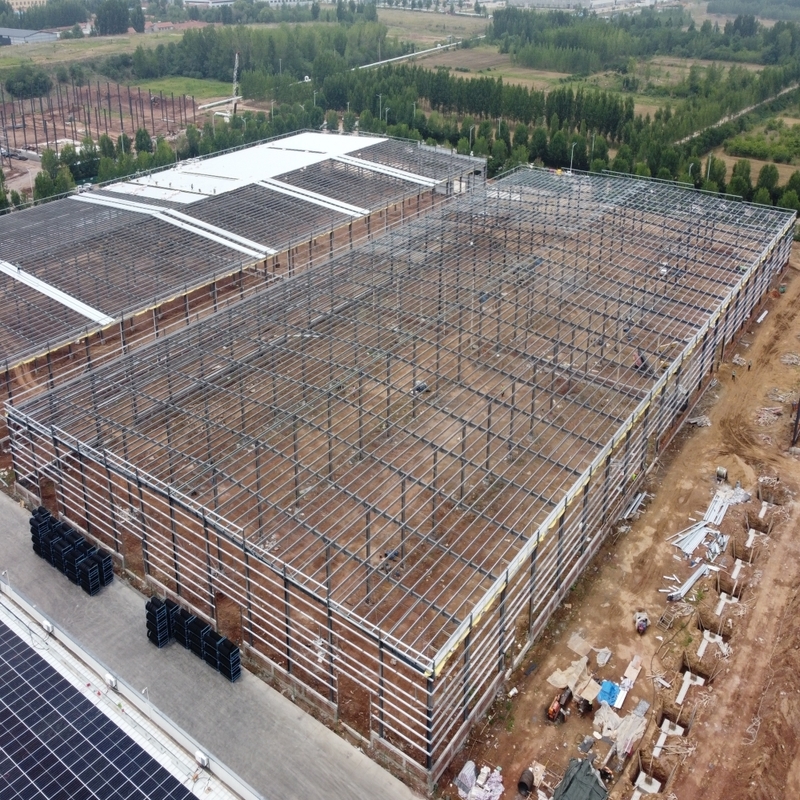

133m×67m 조립식 철골 구조물 창고 구조적 강철 골조 건물 0



Specification of steel structure material:



Steel Frame H section steel Q235/Q355 steel 8mm/10mm
Welding Automatic submerged arc welding
Rust removal Sand blasting
Surface finish Alkyd paint or galvanized
Intensive bolt M20,Grade 10.9
Supporting System Angle brace L50x4,Steel Q235, processed and painted
Horizontal brace Φ20, Steel Q235, processed and painted
Column brance Φ20, Steel Q235, processed and painted
Tie rod Φ89*3, Steel Q235, processed and painted
Ordinary bolt M12 Galvanized bolt
Roof Purlin C160*60*2.5,Steel Q235, galvanized and painted
Roof panel Sandwich panel or corrugated steel sheet
Sky light 6mm thick PVC
Accessories Glass cement, self-tapping screws, etc.
Edge cover 0.4mm steel sheet profile trimming
Gutter 0.4mm thick sheet steel profile or galvanized sheet
Down pie Φ110PVC
Walls Purlin C160*60*2.5,Steel Q235, painted
Wall Sandwich panel or corrugated steel plate
Accessories Glass cement, self-tapping screws, etc.
Edge cover 0.4mm steel sheet profile trimming
Ventilation Ventilation ball
Doors & windows Rolling door/sliding door PVC/alu/steel/window





Design

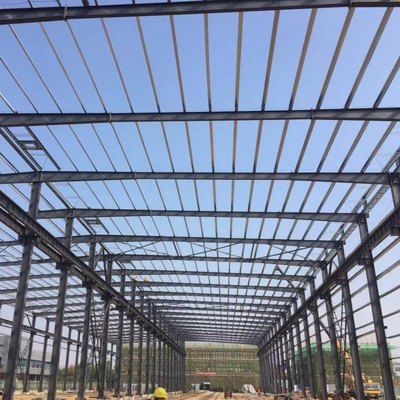

133m×67m 조립식 철골 구조물 창고 구조적 강철 골조 건물 1

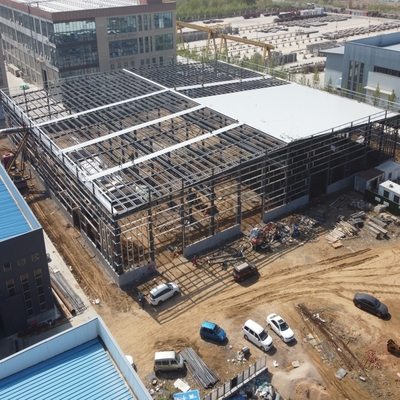

133m×67m 조립식 철골 구조물 창고 구조적 강철 골조 건물 2

Precautions for fixed packaging, loading and unloading, transportation and unloading of steel structure warehouse:

(1) Large lifting tools must have special personnel responsible for them, use them appropriately, and strictly observe

Lifting rules to prevent vibration, impact, deformation or damage during the lifting process.

(2) Special personnel must supervise when loading the truck, check the number and packaging of the truck,

Securely fix and increase the degree of looseness of necessary binding components to prevent loss.

(3) Maintain stability during transportation. When transporting vehicles, in the transportation of long, wide, and high objects, well-trained pilots must be accompanied by responsible personnel and place marks on the vehicles.

(4) Rough handling is not allowed. The handling, weight, and size of the loading and unloading personnel should be familiar with the parts, and check the slings and rigging of the harness to prevent accidents.

(5) Members go to the construction site and organize unloading and stacking areas in time.

(6) When handling parts of a crawler crane, attention should be paid to the surrounding terrain and air conditions to prevent the crawler crane from overturning and component collision.
