제품 상세 정보:
|
애플리케이션: | 가벼운 철골 구조물 저장소 | 용법: | 강철 구조물 작업장, 금속 창고, 공장 건물, 의복 공장, |
---|---|---|---|
타입: | 전 설계된 강철 구조물 | 익지않는 강철 물자: | Q235B, Q355B, ASTM A36 |
서비스 수명: | 50 년 | 작동 범위: | 디자인, 제작, 임명 |
란 & 광속: | H 단면도 강철 | 표면 처리: | 그림 또는 용융 도금법은 활성화합니다 |
하이 라이트: | Logistics Steel Structure Construction,11m Steel Structure Construction,11m Pre Engineered Steel Structure |

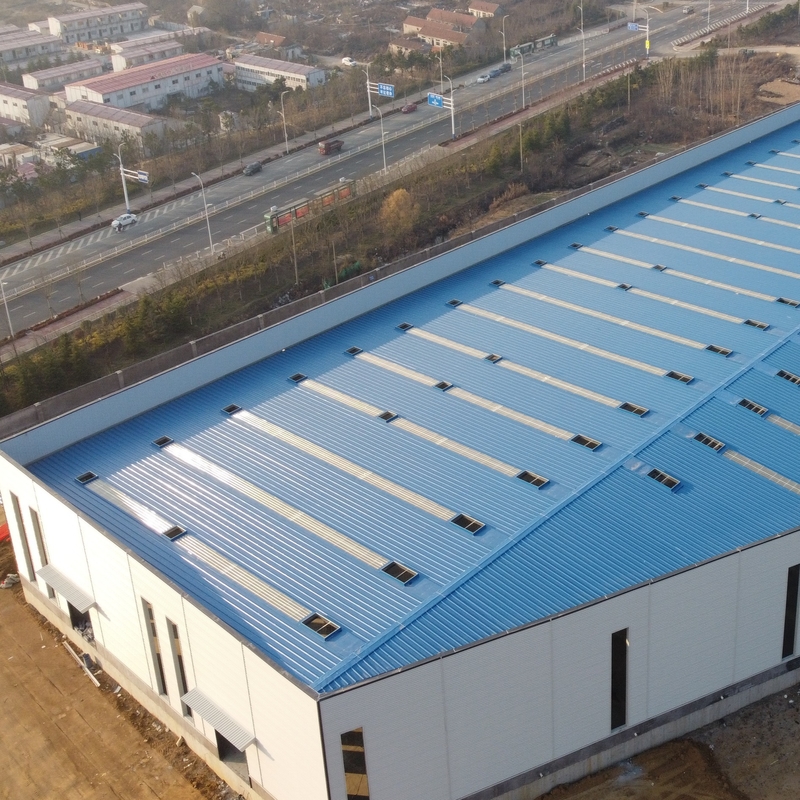

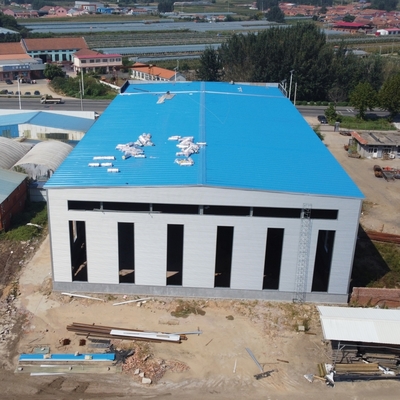

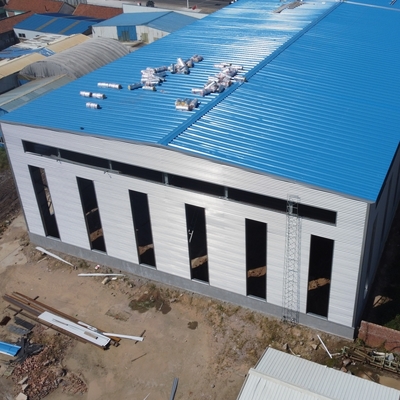

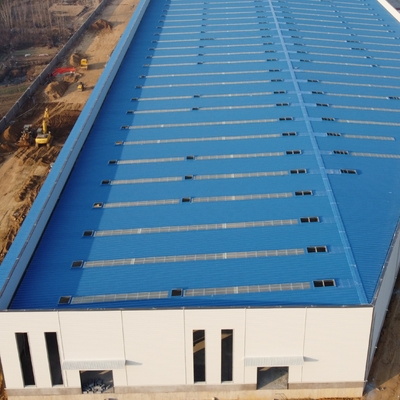

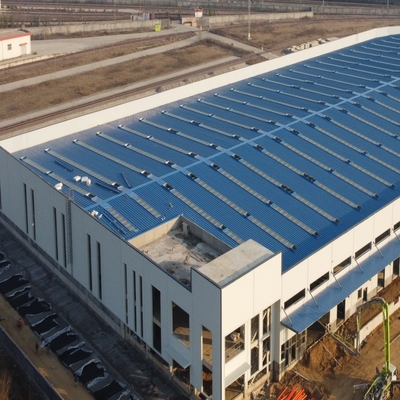

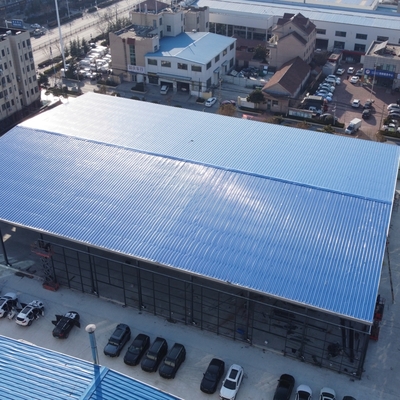

Light Steel Structure Warehouse Buildings For Logistics / Pre Engineered Steel Structure
Light steel structure is a new type of structure developed on the basis of ordinary steel structure, which includes all the steel structure used under light roof.
Compared with ordinary steel structure, it has better economic index.
Light steel structure not only light weight, steel consumption, construction speed is fast, and it itself has a strong seismic capacity, and can improve the overall seismic performance of the house.
It is a kind of structure widely used in industrial plant.
Light steel structure consists of foundation beams, columns, purlins, floors and walls. Single-story light houses generally adopt gantry steel frames
Item | Specification | |
1 | Main Pillar & Beams | Q355B |
2 | Roof Purlins |
C200*70*20*2.5 Galvanize |
3 | Tie Bar | Φ114*4 |
4 | Pillar Supporters | Φ20 |
5 | Tie rod | Φ12,Φ32*2.5 |
6 | Kneebracing | L50*4 |
7 | Foundation bolt | M24 |
8 | General Bolts | C Grade |
9 | Bolt screw | Φ19 |
10 | High Strengthened Bolts | 10.9 Grade |
11 | Roof Panel | 0.5mm Galvanized Steel Plate |
12 | Ribbon skylight | 1.2mm FRP |
13 | Floor Steel deck | 1.00 mm steel plate |
14 | Doors | Sliding door |
15 | Windows | Steel windows |
16 | Gutters | 3mm thick galvanized steel |
17 | Edge and corner wrapping | 0.5mm Galvanized Steel Plate |
18 | Fans | |
19 | Accessories | |
20 | Down pipe | Φ140PVC |
